CI Series Impact Crusher

CI Series Impact Crusher

FOB Reference Price:Get Latest Price

Feeding Size≤1300mm

Capacity Ranges: 80-2000t/h

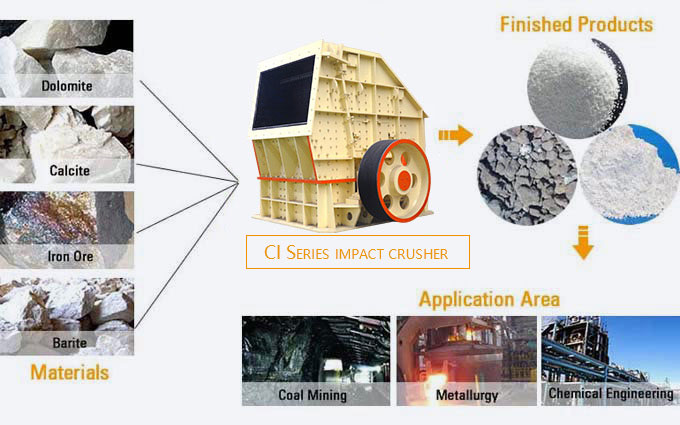

Application Area: building materials, ore crushing, railways, highways, energy, transportation, cement, mining, chemical and other industries.


Free Inquiry

It is suitable for the recovery of quarry and gravel, cement, concrete and asphalt with medium hardness and low abrasion.

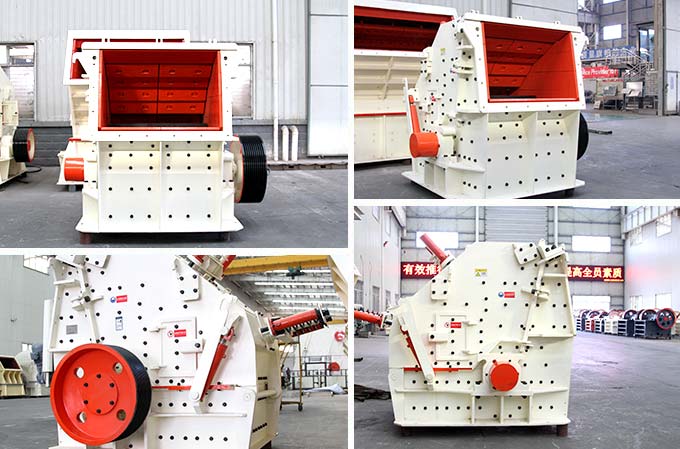

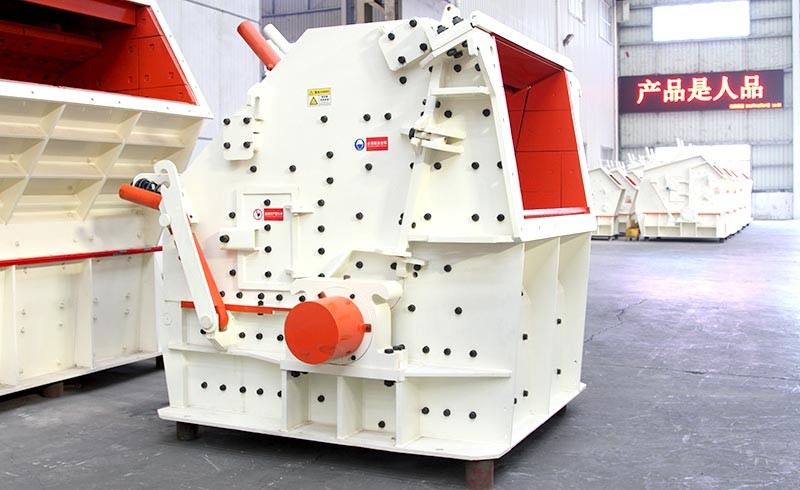

CI series impact crusher integrates the current domestic and international excellent impact crusher technology, and adopts new high-wearing materials for rotor and crushing chamber type. The equipment performance and throughput have increased significantly. It is suitable for industries such as quarry and gravel with medium hardness and low abrasion, cement, concrete and asphalt recycling, slag recycling and other industries.

Outstanding Advantages

It has a refined design of the rotor and cavity type, and the speed and power are reasonably matched to meet the different application options of coarse crushing, medium and fine crushing.

The sturdy heavy-duty rotor structure increases the equipment throughput and crushing ratio. The high quality welded construction ensures that the machine can withstand high impact forces and achieve good crushing results.

With ship type hammer and the firm locking structure, it has good impact and abrasion resistance and keeps the discharge size stable.

The new high wear-resistant materials are used in large quantities to reduce the wear of worn parts, prolong the replacement cycle and save costs.

The hydraulic opening cover, the impact plate and the hammer plate clearance are hydraulically assisted to reduce labor intensity and reduce downtime.

The device is equipped with a variety of case locking devices to improve safety and reduce labor intensity. The third impact frame can be selected to make the product grain shape more excellent.

Technical Parameter

Model Maximum Feeding Size (mm) Power (kw) Capacity (t/h) Dimensions(L×W×H)(mm)
CI1110 250 160 60-210 2826×2087×2285
CI1213 300 200 80-280 2903×2530×2411
CI1316 300 250 100-350 3320×2770×2535
CI1521 350 2×(200-250) 200-600 3450×3620×2770


Model Maximum Feeding Size (mm) Power (kw) Capacity (t/h) Dimensions(L×W×H)(mm)
CI1313 600 200 100-480 2972×2560×2937
CI1415 600 250 120-600 2985×2790×3068
CI1620 800 2×(200-250) 220-900 4261×3480×3780
CI2023 800 2×500 400-2000 5151×4424×4712
