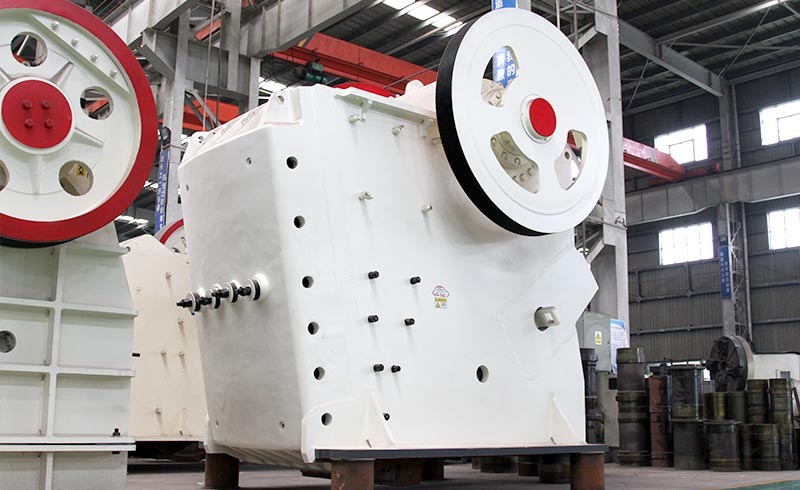

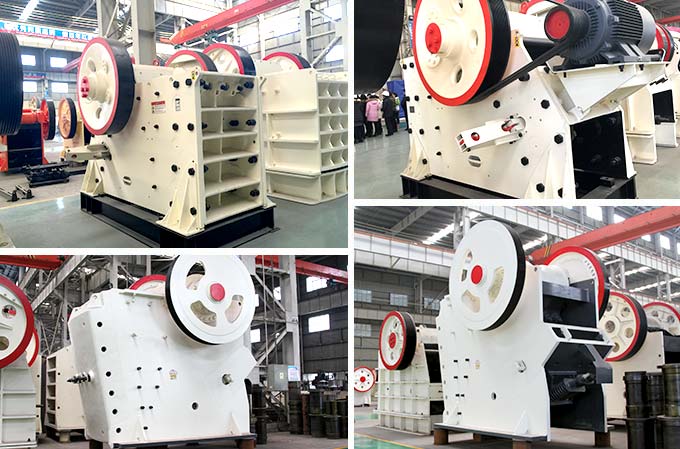

CJ Series Jaw Crusher

CJ Series Jaw Crusher is a jaw crusher with excellent performance that Henan Zhongde Mining Machinery Co., Ltd has developed according to the needs of the customers' market. Different from the traditional jaw crusher, there are significant improvements in the motion parameters, structural forms and adjustment methods of the crusher.

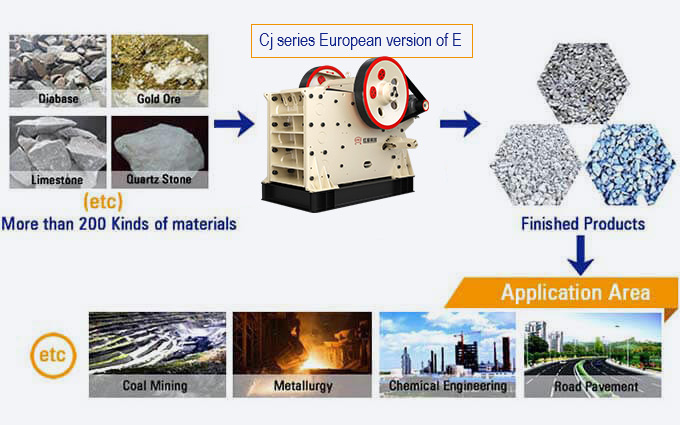

CJ Series Jaw Crusher takes up less space, has a larger crushing ratio, and runs more smoothly. It has advantages in transportation installation and maintenance adjustment which is particularly suitable for use in fixed crushing lines and mobile crushing plants.

CJ Series Jaw Crusher works in a curved extrusion style. Its working principle is: The motor drives the belt and the pulley, moving the cymbal up and down through the eccentric shaft. When the moving jaw rises, the angle between the bracket and the moving jaw becomes larger, thereby pushing the moving jaw to approach the fixed jaw, and at the same time the material is crushed or chopped to achieve the purpose of crushing. When it moving down, the angle between the toggle plate and the moving jaw becomes smaller, and the moving jaw is separated from the fixed jaw by the action of the pulling rod and the spring, and the broken material is discharged from the lower opening of the crushing chamber. As the motor rotates continuously, the moving jaw moves periodically to crush and discharge the material to achieve volume production.

Technical Parameter

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
