Production capacity:12-1000t/h
Discharging Range: 3-60mm

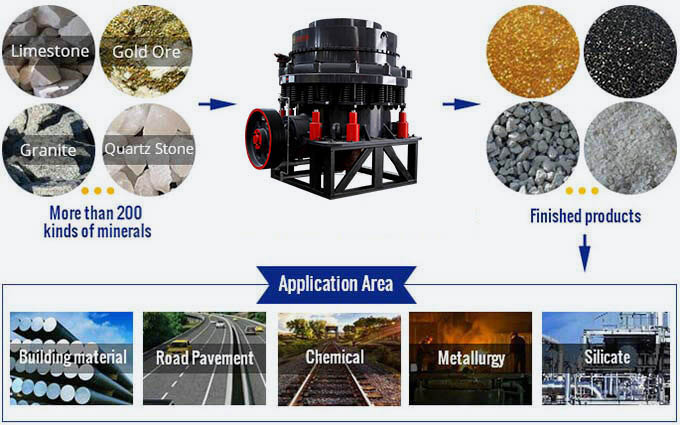

Applied Material:stone, aggregate, gravel, granite, limestone, quartz, coal, dolomite, calcite, basalt, iron ore, gold ore, copper ore, etc.

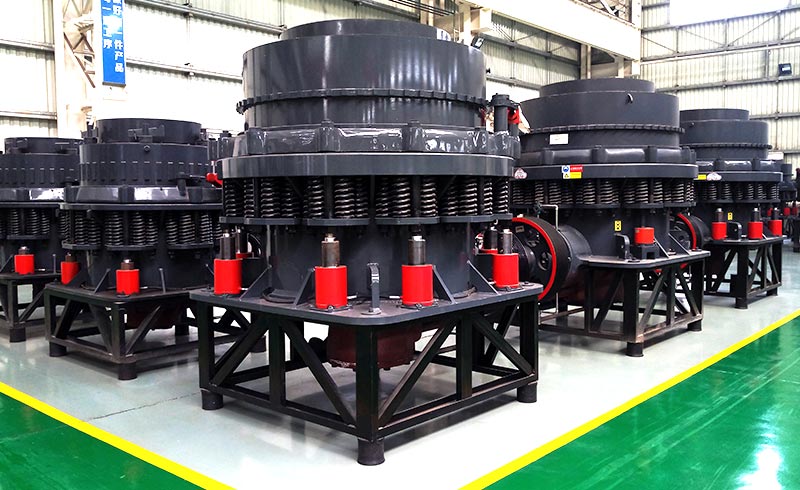

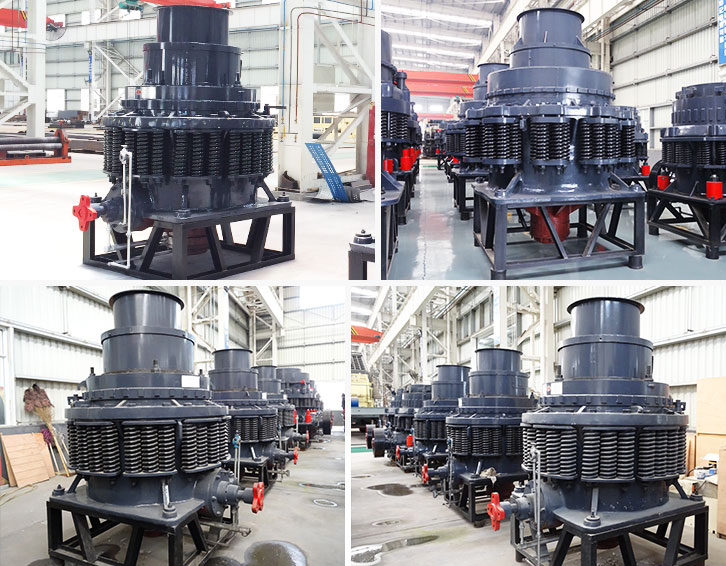

Cone crusher uses laminated crushing principle to make the finished product more cube and uniform . All the parts can be disassembled from top or sides, especially the liner is easy to replace quickly. It can crush a variety of ores and rocks of medium and above hardness.
Materials that can be broken: calcite, granite, quartzite, concrete, limestone, granite, river pebble, dolomite, bluestone, iron ore, rock, stone of various materials, construction waste, glass, cement clinker and certain metals, etc.
Cone Crusher
Full Hydraulic Cone Crusher
Multi-cylinder Hydraulic Cone Crusher
Single-cylinder Hydraulic Cone Crusher
Compound Cone Crusher
Specification | Model | Diameter of large end of crushing cone (mm) |
Max.feeding size(mm) |
Width of discharge opening (mm) |
Processing capacity (t/h) |
Motor power (kw) |
Total weight (t) |
Dimensions (L×W×H) (mm) |
Φ600 | PYB600 | 600 | 65 | 12-25 | 40 | 8P 30 | 5 | 2234×1370×1675 |
PYD600 | 35 | 3-13 | 12-23 | 5.5 | 2234×1370×1675 | |||
Φ900 | PYB900 | 900 | 115 | 15-50 | 50-90 | 8P 55 | 11.2 | 2692×1640×2350 |
PYZ900 | 60 | 5-20 | 20-65 | 11.2 | 2692×1640×2350 | |||
PYD900 | 50 | 3-13 | 15-50 | 11.3 | 2692×1640×2350 | |||
Φ1200 | PYB1200 | 1200 | 145 | 20-50 | 110-168 | 8P 110 | 24.7 | 2790×1878×2844 |
PYZ1200 | 100 | 8-25 | 42-135 | 25 | 2790×1878×2844 | |||
PYD1200 | 50 | 3-15 | 18-105 | 25.3 | 2790×1878×2844 | |||
Φ1750 | PYB1750 | 1750 | 215 | 25-50 | 180-360 | 8P 160 | 50.3 | 3910×2894×3809 |
PYZ1750 | 185 | 10-30 | 80-210 | 50.3 | 3910×2894×3809 | |||
PYD1750 | 85 | 5-13 | 60-180 | 50.2 | 3910×2894×3809 | |||
Φ2200 | PYB2200 | 2200 | 300 | 30-60 | 420-700 | 8P 280-260 | 80 | 4622×3302×4470 |
PYZ2200 | 230 | 10-30 | 130-410 | 80 | 4622×3302×4470 | |||
PYD2200 | 100 | 5-15 | 80-200 | 81.4 | 4622×3302×4470 |
Model | Cavities | Broken cone big end diameter(mm) | Feeding Size(mm) | Max.feeding Size(mm) | Adjusting Range of Discharge Opening(mm) | Processing capacity(t/h) | Power(kw) | Weight of main machine(t) |
GYS 300 | C1 | 910 | 175 | 140 | 13-38 | 81-180 | 90 | 10 |
C2 | 102 | 80 | 9-22 | 60-180 | ||||
F1 | 76 | 60 | 3-16 | 36-145 | ||||
F2 | 41 | 30 | 3-13 | 36-130 | ||||
GYS 400 | C1 | 1200 | 241 | 190 | 19-51 | 207-400 | 200 | 20 |
C2 | 210 | 168 | 16-38 | 162-350 | ||||
C3 | 137 | 110 | 13-31 | 126-310 | ||||
F1 | 105 | 85 | 8-25 | 109-230 | ||||
F2 | 89 | 70 | 6-16 | 82-230 | ||||
F3 | 64 | 50 | 3-16 | 40-230 | ||||
GYS 500 | C1 | 1600 | 269 | 215 | 25-64 | 280-650 | 280 | 40 |
C2 | 241 | 190 | 22-51 | 258-450 | ||||
C3 | 209 | 170 | 16-38 | 180-410 | ||||
F1 | 133 | 105 | 10-25 | 162-355 | ||||
F2 | 89 | 70 | 6-19 | 136-330 | ||||
F3 | 70 | 55 | 5-13 | 90-300 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Model | Cavities | Broken cone big end diameter(mm) | Feeding size(mm) | Maximum Feeding size(mm) | Adjusting Range of Discharge port(mm) | Capacity(t/h) | Power(kw) | Weight of main machine(t) |
HPM200 | C1 | 900 | 185 | 145 | 22 | 160~250 | 160 | 11 |
C2 | 125 | 100 | 18 | 145~250 | ||||
C3 | 95 | 75 | 14 | 120~250 | ||||
F1 | 76 | 60 | 12 | 108~210 | ||||
F2 | 54 | 45 | 10 | 81~210 | ||||
HPM300 | C1 | 1100 | 235 | 190 | 26 | 230~445 | 220 | 20 |
C2 | 211 | 170 | 20 | 200~445 | ||||
C3 | 150 | 120 | 16 | 180~445 | ||||
C4 | 107 | 85 | 14 | 160~220 | ||||
F1 | 53 | 40 | 12 | 140~220 | ||||
HPM400 | C1 | 1400 | 299 | 240 | 35 | 270~630 | 315 | 27 |
C2 | 252 | 200 | 25 | 252~630 | ||||
C3 | 198 | 160 | 25 | 243~630 | ||||
C4 | 111 | 190 | 18 | 210~630 | ||||
F1 | 92 | 75 | 15 | 162~370 | ||||
F2 | 52 | 40 | 13 | 126~370 | ||||
HPM500 | C1 | 1500 | 335 | 270 | 38 | 365~790 | 400 | 40 |
C2 | 286 | 230 | 30 | 328~790 | ||||
C3 | 204 | 165 | 22 | 280~790 | ||||
C4 | 133 | 105 | 20 | 202~450 | ||||
F1 | 95 | 75 | 16 | 175~450 | ||||
F2 | 52 | 42 | 8 | 158~450 | ||||
HPM650 | C1 | 328 | 262 | 30 | 386~790 | 500 | ||
C2 | 279 | 225 | 25 | 348~790 | ||||
C3 | 196 | 175 | 20 | 300~790 | ||||
F1 | 106 | 85 | 13 | 280~530 | ||||
F2 | 52 | 42 | 9 | 220~530 | ||||
HPM800 | C1 | 2000 | 353 | 280 | 38 | 616~1100 | 630 | 70 |
C2 | 297 | 240 | 38 | 522~1100 | ||||
C3 | 267 | 214 | 25 | 495~1100 | ||||
C4 | 219 | 175 | 22 | 380~1100 | ||||
F1 | 155 | 125 | 20 | 328~730 | ||||
F2 | 92 | 75 | 16 | 270~730 | ||||
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
SC Single Cylinder Cone Crusher Medium Crushing Series
Model | Cavities | Feeding Size (mm) | Maximum Feeding Size (mm) | Minimum Discharging Size (mm) | Power (kw) | Capacity(t/h) |
SC100S | C1 | 240 | 175 | 22 | 90 | 85-170 |
C2 | 200 | 160 | 19 | 70-130 | ||
SC160S | C1 | 360 | 290 | 25 | 160 | 125-345 |
C2 | 300 | 240 | 22 | 108-305 | ||
SC250S | C1 | 450 | 360 | 35 | 250 | 265-524 |
C2 | 400 | 320 | 29 | 225-448 | ||
SC315S | C1 | 560 | 450 | 41 | 315 | 349-1050 |
C2 | 500 | 400 | 38 | 318-892 | ||
SC450S | C1 | 600 | 480 | 44 | 450 | 498-1500 |
C2 | 480 | 385 | 41 | 454-1274 |
SC Single Cylinder Cone Crusher Fine Crushing Series
Model | Cavities | Feeding Size (mm) | Maximum Feeding Size (mm) | Minimum Discharging Size (mm) | Power (kw) | Capacity(t/h) |
SC100 | F1 | 150 | 120 | 10 | 90 | 45-135 |
F2 | 90 | 70 | 10 | 43-118 | ||
F3 | 50 | 40 | 6 | 25-40 | ||
SC160 | F1 | 200 | 160 | 13 | 160 | 69-215 |
F2 | 115 | 90 | 10 | 57-184 | ||
F3 | 75 | 60 | 8 | 70-90 | ||
SC250 | F1 | 240 | 190 | 16 | 250 | 116-396 |
F2 | 140 | 110 | 13 | 97-346 | ||
F3 | 70 | 55 | 9 | 90-251 | ||
SC315 | F1 | 275 | 220 | 32 | 315 | 177-662 |
F2 | 215 | 170 | 29 | 209-643 | ||
F3 | 175 | 140 | 29 | 162-552 | ||
F4 | 85 | 70 | 19 | 175-325 | ||
SC560 | F1 | 300 | 240 | 22 | 560 | 448-1512 |
F2 | 195 | 155 | 19 | 380-1373 | ||
F3 | 90 | 70 | 13 | 357-912 | ||
SC750 | F1 | 370 | 295 | 25 | 750 | 394-2181 |
F2 | 300 | 240 | 19 | 342-2020 | ||
F3 | 230 | 185 | 16 | 267-1814 | ||
F4 | 120 | 95 | 13 | 248-1165 | ||
F5 | 85 | 70 | 10 | 185-1170 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Type | Model | Diameter of Large end of Crushing Cone(mm) | Feeding Size(mm) | Max.feeding size(mm) | Adjusting Range of Discharge Opening(mm) | Processing capacity(t/h) | Main motor power(kw) | Machine weight(t) |
PSG 1300 | 1313 | 1295 | 137 | 110 | 13-31 | 109-181 | 160 | 23 |
1321 | 210 | 170 | 16-38 | 132-253 | ||||
1324 | 241 | 190 | 19-51 | 172-349 | ||||
1306 | 64 | 50 | 3-16 | 36-163 | ||||
1308 | 89 | 70 | 6-16 | 82-163 | ||||
1310 | 105 | 85 | 8-25 | 109-227 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
