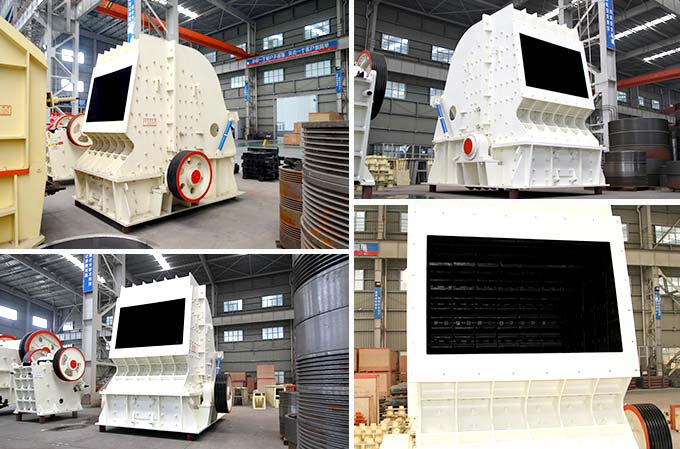

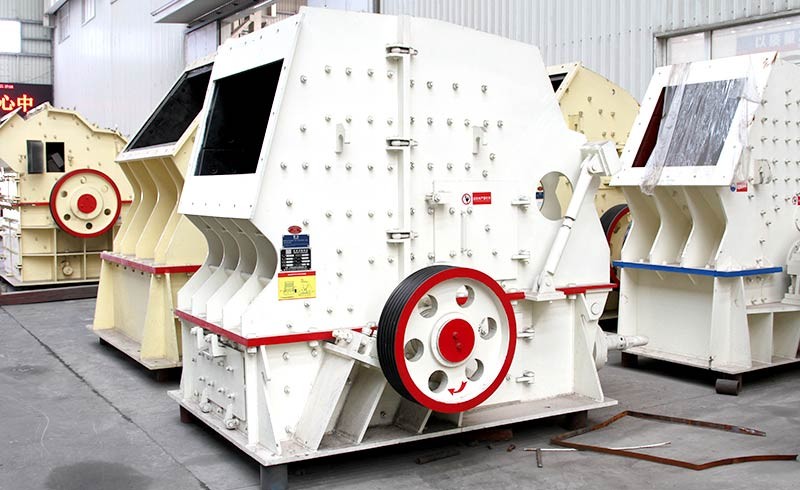

HD German Impact Crusher

HD German Impact Crusher

FOB Reference Price:Get Latest Price

Production Capacity:90-670t/h

Input Size: 200-1300mm

Applied Material: limestone, granite, river pebble, calcium carbide, quartz stone, dolomite, iron ore, concrete, coal, gypsum, etc.


Free Inquiry

HD series impact crusher is a new type of impact crusher developed by Zhongde based on more than 20 years of experience in research, design and manufacture of PF series. This series of impact crushers features heavy-duty rotor design, unique plate hammer locking system, replaceable internal liner and easy maintenance.

Therefore, this series of impact crusher provides customers with a low-cost solution with outstanding performance and good grain shape. The unit runs less money and has a wide range of application.

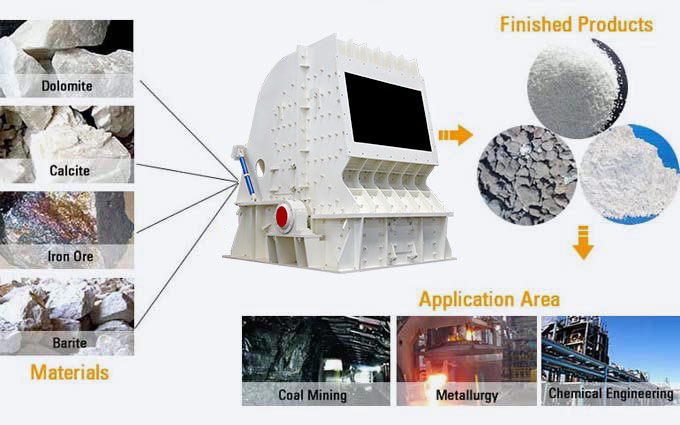

It is widely used in building materials, ore crushing, railway, highway, energy, transportation, cement, mining, chemical and other industries for medium and fine crushing. Due to the remarkable effect of the HD German impact crusher, in some small and medium-sized factories and mines, it can replace jaw crusher, roll crusher and cone crusher.

Outstanding advantages: optimized cavity for higher yield; large feed inlet design for breaking larger size materials; improved plate hammer fixing method, increased reliability; reliable overload protection; easy to maintain, safe and reliable

Technical Parameter

Model Rotor
The Maximum Feeding Size
Motor power

Overall dimension

-150MPa -350MPa
HD1110 Φ1040×1000 400 200 90~190 4P   90-132 3000×2360×2385 15875
HD1315 Φ1300×1500 700 300 180~280 4P    200-270 3735×3156×3055 29600
HD1520 Φ1500×2000 1000 400 350~500 4P   400-500 4310×3330×3660 42000
HD1625 Φ1650×2500 1300 500 500~670 4P   500-670 5540×4330×4600 66000
