Feeding Size: ≤400mm
Capacity: 75-1300m³/h

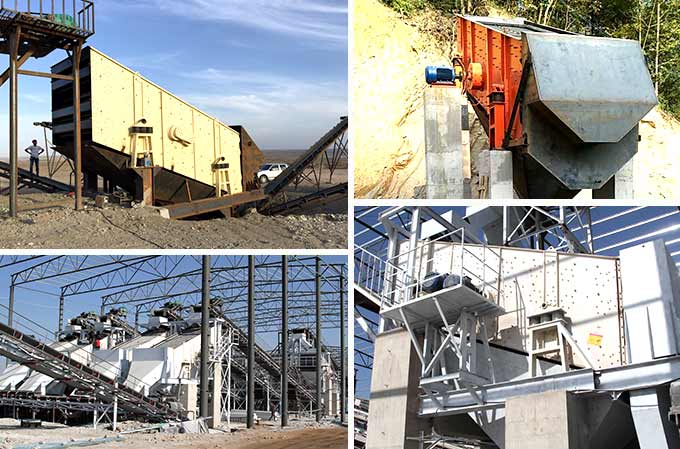

Application Area: Sand and gravel yard, mining, coal mining, concrete mixing plant, dry mortar, power plant desulfurization, quartz sand, etc.
Free Inquiry Features: advanced structure, strong excitation force, low vibration noise, easy maintenance, sturdy and durable

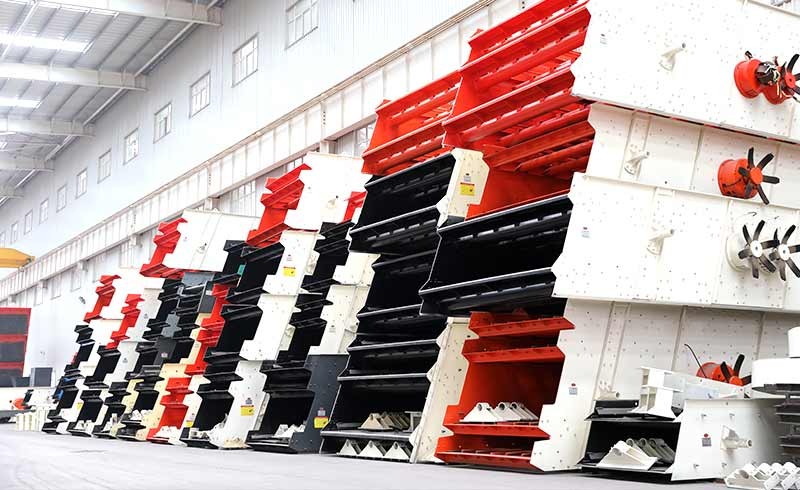

ZD series vibrating screen is a new type of circular vibrating screen product which is based on YA and YK series, comprehensive customer site use and maintenance experience, and upgraded for heavy duty conditions.
Outstanding advantages:
Screen angle is 18°, screening efficiency is higher
The exciter is an eccentric shaft + eccentric block structure, providing sufficient excitation force
Thin oil self-lubricating, change lubricant once every 3-6 months
The key parts are designed with a wear-resistant rubber protective layer to extend the service life of the screen.
How does the vibrating Screen Work
ZD series vibrating screen is mainly composed of screen box, vibration exciter, suspension (or support) device and motor.The motor is driven by a V-belt to drive the spindle of the exciter to rotate. Due to the centrifugal inertial force of the unbalanced weight on the exciter, the screen box is vibrated.Different amplitudes can be obtained by changing the exciter eccentric shaft.
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Model
Sieve Layer
Sieve Obliquity
(°)Motor Power
(kw)Vibrating Frequency
(r/min)Max.Feeding Size
(mm)Capacity
(t/h)Dimensions(mm)
（L×W×H）
2ZD1545
2
18
15
780-900
200
45-500
5380×2295×1410
3ZD1545
3
18
18.5
780-900
200
55-500
5575×2295×1990
4ZD1545
4
18-20
22
780-900
200
65-500
5765×2295×1990
2ZD1855
2
18
18.5
780-900
200
55-600
5680×2565×1450
3ZD1855
3
18
22
780-900
200
65-600
5900×2565×2110
4ZD1855
4
18-23
22
780-900
200
75-600
6030×2565×2500
2ZD2165
2
18
30
780-900
200
65-700
7160×2990×1690
3ZD2165
3
18
30
780-900
200
75-700
7380×2990×2365
4ZD2165
4
18-23
37
780-900
200
85-700
7430×2990×2500
2ZD2465
2
18
37
780-900
200
80-800
7160×3290×1690
3ZD2465
3
18
37
780-900
200
90-800
7380×3290×2365
4ZD2465
4
18-23
37
780-900
200
100-800
7430×3290×2500
2ZD2765
2
18
37
780-900
200
100-900
7180×3570×1805
3ZD2765
3
18
45
780-900
200
110-900
7390×3570×2445
4ZD2765
4
18-23
45
780-900
200
120-900
7480×3570×2715
2ZD3065
2
18
37
780-900
200
110-1200
7180×3870×1805
3ZD3065
3
18
45
780-900
200
120-1200
7390×3870×2445
4ZD3065
4
18-23
45
780-900
200
130-1200
7480×3870×2715
2ZD3075
2
18
22×2
780-900
300
120-1300
8700×4055×1980
3ZD3075
3
18
37×2
780-900
300
130-1300
8940×4120×2720
