Processing Capacity:30-800t/h
Max Feed Opening: 400×730-1260×2040mm
Applied Material:stone, basalt, granite, pebbles,limestone, quartz, iron ore, marble, copper ore, gold ore, etc.

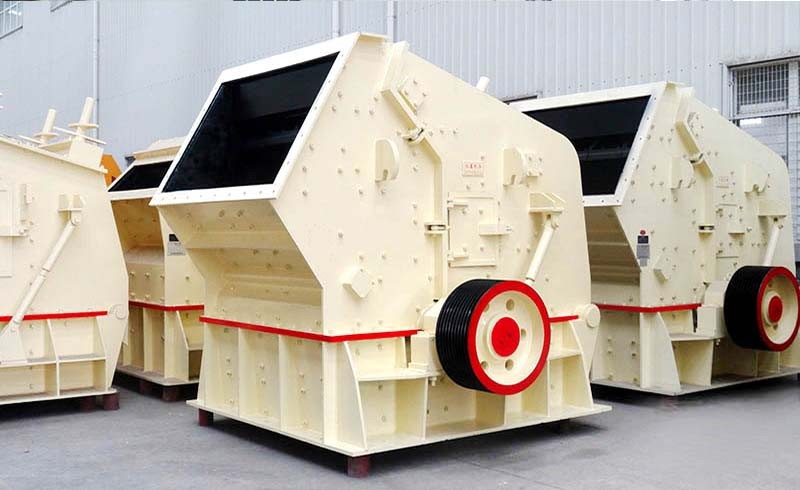

Impact crusher can crush the stone whose length is less than 500mm and compressive strength is not more than 350MPa. The interval between impact plate and hammer can be easily adjusted, which effectively control the discharging size and ensure good particle shape.
Materials that can be broken: limestone, gangue, granite, bluestone, construction waste, cobblestone, river pebble, basalt, basalt, iron ore, quartzite, calcite, quartzite, concrete. Granite, limestone, concrete, glass, cement clinker and certain metals etc.
PF Series Impact Crusher
CI Series Impact Crusher
HX Series Impact Crusher
HD Impact Crusher
Model | Specifications (mm) | Feed Opening (mm) | Max.Feeding Size (mm) | Capacity (t/h) | Power (kw) | Dimensions(L×W×H) (mm) |
PF-1007 | Φ1000×700 | 400×730 | 300 | 30-70 | 4P 37-45 | 2330×1660×2300 |
PF-1010 | Φ1000×1050 | 400×1080 | 350 | 50-90 | 4P 45-55 | 2370×1700×2390 |
PF-1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 6P 110 | 2680×2160×2800 |
PF-1214 | Φ1250×1400 | 400×1430 | 350 | 80-180 | 6P 132 | 2650×2460×2800 |
PF-1315 | Φ1320×1500 | 860×1520 | 500 | 100-280 | 6P 200 | 3180×2720×3120 |
PF-1320 | Φ1300×2000 | 993×2000 | 500 | 140-380 | 6P 250 | 3220×3100×3120 |
PF-1520 | Φ1500×2000 | 830×2040 | 700 | 200-550 | 4P 315-400 | 3959×3564×3330 |
PF-1820 | Φ1800×2000 | 1260×2040 | 800 | 300-800 | 6P 630-710 | 4400×3866×4009 |
Model | Maximum Feeding Size (mm) | Power (kw) | Capacity (t/h) | Dimensions(L×W×H)(mm) |
CI1110 | 250 | 160 | 60-210 | 2826×2087×2285 |
CI1213 | 300 | 200 | 80-280 | 2903×2530×2411 |
CI1316 | 300 | 250 | 100-350 | 3320×2770×2535 |
CI1521 | 350 | 2×(200-250) | 200-600 | 3450×3620×2770 |
Model | Maximum Feeding Size (mm) | Power (kw) | Capacity (t/h) | Dimensions(L×W×H)(mm) |
CI1313 | 600 | 200 | 100-480 | 2972×2560×2937 |
CI1415 | 600 | 250 | 120-600 | 2985×2790×3068 |
CI1620 | 800 | 2×(200-250) | 220-900 | 4261×3480×3780 |
CI2023 | 800 | 2×500 | 400-2000 | 5151×4424×4712 |
FTM Series Counterattack Break Secondary Counterattack Break (Fine Break)
Model | Maximum Feeding Size(mm) | Crusher weight Containing hopper(kg) |
Power(kw) | Processing capacity(t/h) |
FTM100S | 300 | 11380 | 160 | 60-210 |
FTM120S | 350 | 18112 | 200 | 80-300 |
FTM140S | 350 | 29650 | 400 | 150-700 |
FTM Series Counter-break Primary Counter-break (Coarse Break) Applicable to Construction Waste Crushing
Model | Maximum Feeding Size(mm) | Crusher weight Containing hopper(kg) |
Power(kw) | Processing capacity(t/h) |
FTM100P | 600 | 10940 | 160 | 60-210 |
FTM120P | 900 | 17252 | 200 | 80-400 |
FTM140P | 1000 | 27750 | 315 | 200-700 |
Model | Rotor (mm) |
The Maximum Feeding Size (mm) |
Capacity (t/h) |
Motor power (kw) |
Overall dimension |
Weight (kg) |
|
-150MPa | -350MPa | ||||||
HD1110 | Φ1040×1000 | 400 | 200 | 90~190 | 4P 90-132 | 3000×2360×2385 | 15875 |
HD1315 | Φ1300×1500 | 700 | 300 | 180~280 | 4P 200-270 | 3735×3156×3055 | 29600 |
HD1520 | Φ1500×2000 | 1000 | 400 | 350~500 | 4P 400-500 | 4310×3330×3660 | 42000 |
HD1625 | Φ1650×2500 | 1300 | 500 | 500~670 | 4P 500-670 | 5540×4330×4600 | 66000 |
