PEY Series Hydraulic Jaw Crusher

PEY Series Hydraulic Jaw Crusher

FOB Reference Price:Get Latest Price

Production Capacity:30-220t/h

Input Size: 250-630mm

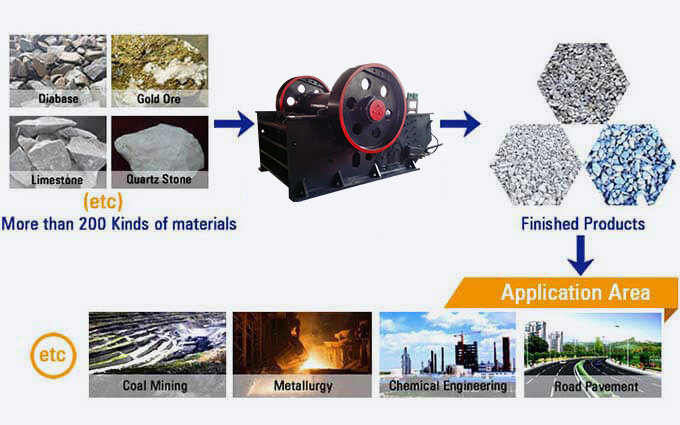

Applied Material: river pebble, granite, basalt, iron ore, limestone, quartz, diabase, iron ore, gold, copper, etc.


Free Inquiry

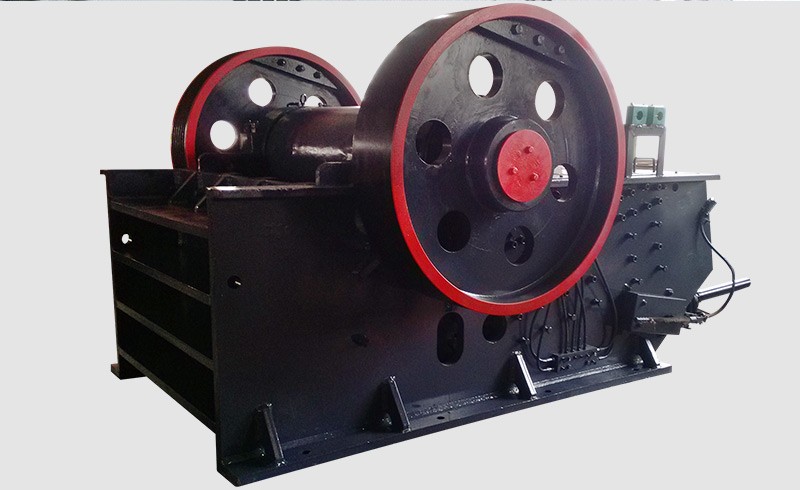

PEY series hydraulic protection jaw crusher is a single cylinder hydraulic jaw crusher, which is mainly used for rough and medium crushing of steel slag. The equipment has been optimized several times and has formed unique characteristics. It features high reliability, long life of consumable parts and easy maintenance. Compared with the crushing equipment without hydraulic device, when the mouth bite into the unbreakable material, the load of the machine will rise sharply, and the hydraulic protection device automatically unloads, avoiding the sudden increase of the load on the body.

It has four outstanding advantages: improving the crushing efficiency and saving operation cost; reducing the damage to the equipment to a low limit; strict special procedures to ensure long-term stability and durability; high degree of automation.

It is mainly used in metallurgy, mining, chemical, cement, construction, refractory materials and ceramics industries for medium and fine crushing of various medium hard ores and rocks.

Technical Parameter

Model PEY-400x600 PEY-500x750 PEY-600x900 PEY-750x1060


Size of feeding port(mm) 400x600 500x750 600x900 750x1060 300x1300
Max. Feeding size (mm) 340 425 500 630 250
Discharging size(mm) 40~90 35~100 75~125 80~150 20~100
Eccentric shaft speed 30 255 250 255
Handling capacity(t/h) 30~65 50~120 80~200 120~220 40~100
Power of main motor(KW) 30 55 75 110 75
Hydraulic cylinder working pressure:5-7MPa
ylinder diameter:Φ250mm
Piston stroke:160mm
working pressure:5-8MPa
ylinder diameter:Φ320mm
Piston stroke:200mm
working pressure:11MPa
ylinder diameter:Φ400mm
Piston stroke:320mm
working pressure:5-8MPa
ylinder diameter:Φ320mm
Piston stroke:200mm
Dimensions (L x W x H) 3030x1350x1600 3300x1900x2100 3955x3360x2398 4980x2500x3100 4050x3420x1850
Weight(kg) 9480 16200 23400 37800 18200
