Production capacity: 30-800 t/h
Feed opening: 400×730-1260×2040mm
Applied Material: stone, basalt, granite, pebbles,limestone, quartz, iron ore, marble, copper ore, gold ore, etc.

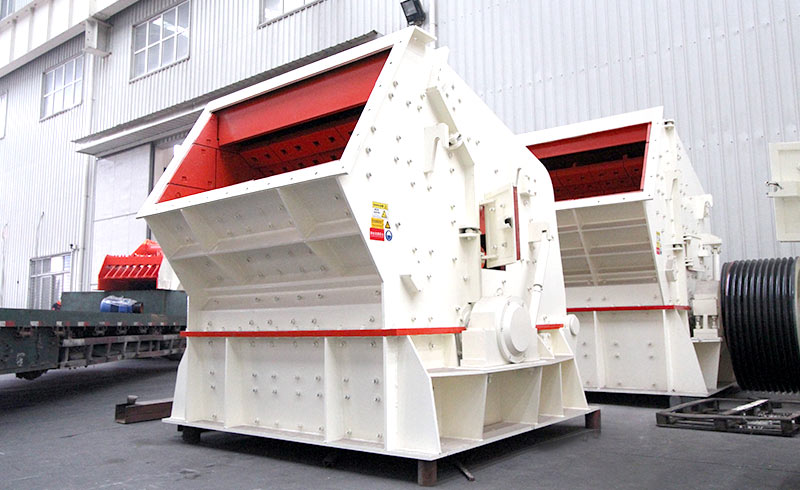

Free Inquiry Concrete crusher can crush the stone whose length is less than 500mm and compressive strength is not more than 350MPa. The interval between impact plate and hammer can be easily adjusted, which effectively control the discharging size and ensure good particle shape.

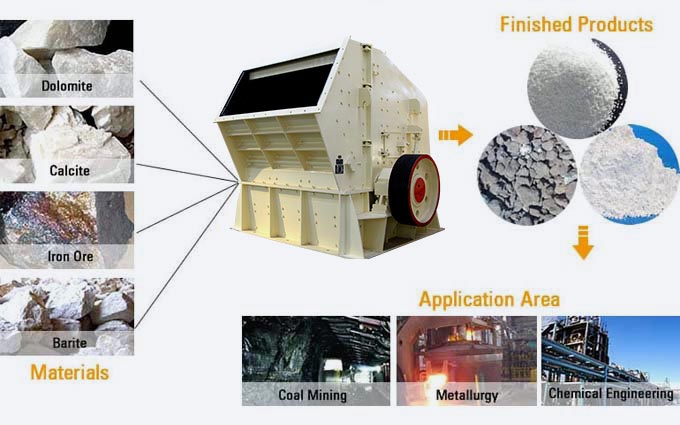

Materials that can be broken: limestone, gangue, granite, bluestone, construction waste, cobblestone, river pebble, basalt, basalt, iron ore, quartzite, calcite, quartzite, concrete. Granite, limestone, concrete, glass, cement clinker and certain metals etc.
Model
Specifications （mm）
Feed Opening （mm）
Max.Feeding Size （mm）
Capacity （t/h）
Power （kw）
Dimensions（L×W×H） （mm）
PF-1007
Φ1000×700
400×730
300
30-70
4P 37-45
2330×1660×2300
PF-1010
Φ1000×1050
400×1080
350
50-90
4P 45-55
2370×1700×2390
PF-1210
Φ1250×1050
400×1080
350
70-130
6P 110
2680×2160×2800
PF-1214
Φ1250×1400
400×1430
350
80-180
6P 132
2650×2460×2800
PF-1315
Φ1320×1500
860×1520
500
100-280
6P 200
3180×2720×3120
PF-1320
Φ1300×2000
993×2000
500
140-380
6P 250
3220×3100×3120
PF-1520
Φ1500×2000
830×2040
700
200-550
4P 315-400
3959×3564×3330
PF-1820
Φ1800×2000
1260×2040
800
300-800
6P 630-710
4400×3866×4009
