Raymond Mill

Raymond Mill

FOB Reference Price:Get Latest Price

Feeding Size: ≤30mm

Output Size:0.173-0.044mm

Processing Materials: Coal, barite, calcite, potassium feldspar, talc, marble, limestone, dolomite, fluorite, etc.


Free Inquiry

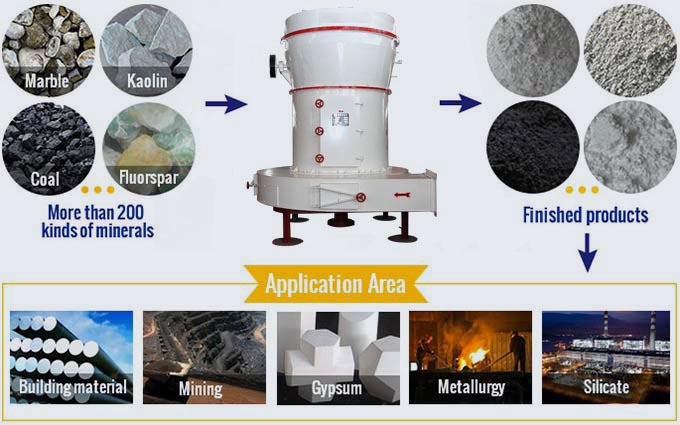

Application Range of Raymond Mill

Raymond Mill is a kind of power making equipment. Application materials’ Molar hardness  should be less than 9.3 and humidity no more than 6%. R-type raymond mill’s finished product size varies randomly from 80 meshes to 325 meshes and some even can reach up to 600 meshes.

Raymond Mill with sealed gear box operates smoothly and uses high manganese steel as quick-wear parts to prolong its service life span.

Raymond Mill

Compared with other grinding mill, Our Raymond Mill has much lower price but higher quility.

Technical Parameter

Model 4525 4119
Feeding Size(mm) ≤30 ≤25
Output Size(mm) 0.173-0.044 0.173-0.044
Shift Output of Different Material Fineness(t) 16-176 8-78
Rotation Speed of Central Shaft(r/min) 82 105
Ring Diameter(mm) 1770 1400
Roller Diameter(mm) 450 410
Roller Height(mm) 250 190
Main Motor(kw) Y315M-4-132 Y280S-4-75
Fan Motor Y315M-4-132 Y280S-4-75
Analyzer Motor YCT250-4A-18.5 YCT200-4B-7.5
