Rod Mill

Rod Mill

FOB Reference Price:Get Latest Price

Feeding Size:≤50 mm

Capacity: 0.62-180 t/h

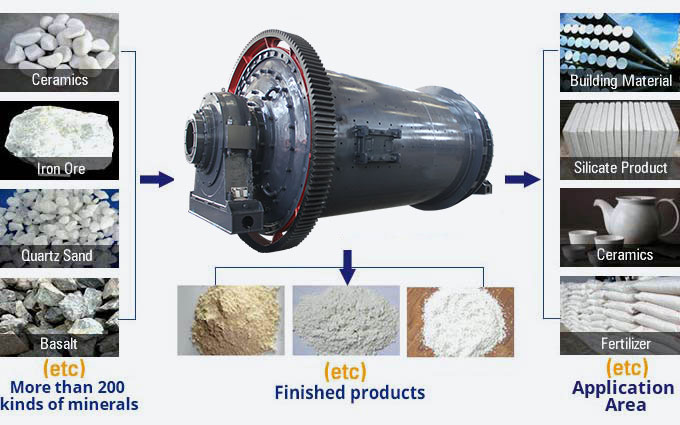

Application Area: Cement, silicate products, new building materials, refractory materials, chemical fertilizers, black and non-ferrous metals, and glass ceramics.


Free Inquiry

Rod mill has dry and wet two types to choose, users could choose depend on the fact. The company users the advanced output controllable technology, with the fact milling material set the suitable miller, change the traditional point contact into line contact, make the output granularity evener, high product, widely used in chemical industry, metallurgy, glass industry, and the high requirement of the evenness for milling after milling, sand making of building sand in recent years.

Highlight Advantages: The characteristic of rod mill is that the grinding medium is in line contact with ore in the grinding process, so it has selective grinding effect. The particle size of the product is more uniform, and the ore particles are less than comminuted ore. When used in rough grinding, the processing capacity of rod mill is larger than that of ball mill of the same specification.

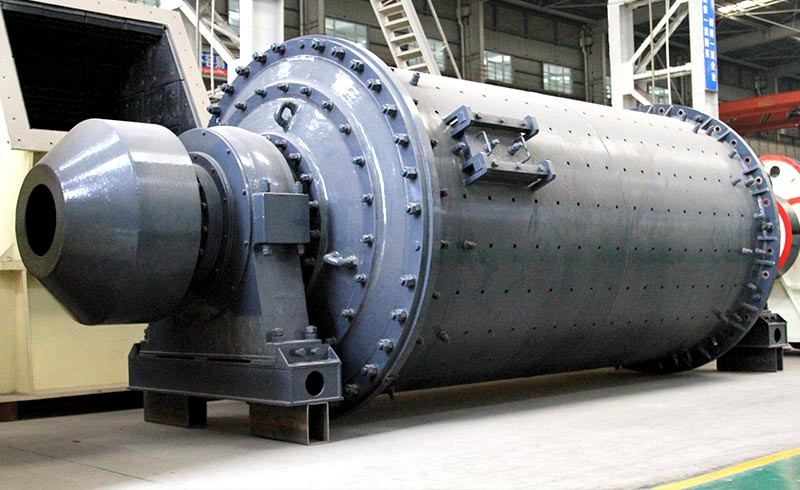

Operational Principle: The rod mill is driven by the motor through the reducer and the peripheral big gear deceleration drive or by the low speed synchronous motor directly through the rod mill passing through the peripheral big gear deceleration drive to drive the cylinder body to turn. The cylinder is fitted with a suitable grinding medium-steel bar. The grinding medium is raised to a certain height under the action of centrifugal force and friction force and falls in the state of falling or falling. The ground material is continuously entered into the barrel by the feed mouth, crushed by the moving grinding medium, and the product is discharged out of the machine by the force of overflow and continuous ore feeding to carry on the next working procedure.

Technical Parameter

Shell Specifications (mm)
Shell rotation speed
Feeding size
Discharging size
Processing capacity
Total weight
Diameter Length
MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5 5.9
MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 6.7
MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 13.9
MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 19.8
MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 34.9
MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 46.5
MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 48.7
MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 59.7
MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 92.5
MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 95
MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 149
