Roll crusher

Roll crusher

FOB Reference Price:Get Latest Price

Production capacity:5-100t/h

Feeding size:≤25-≤300

Applied Material:pebble, calcite, granite, quartz, concrete, dolomite, bluestone,limestone,coal gangue, basalt, sandstone, rocks, ore


Free Inquiry

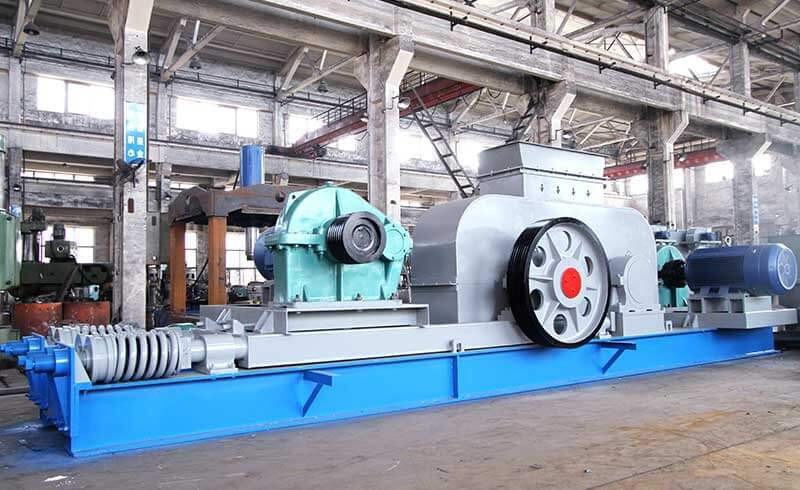

Introduction of roller crusher:

roller crusher

Roll crusher is mainly composed of roller, roller support bearing, hold-down device, adjustment device, driving device and so on. When discharging materials, we can realize adjustment of discharging granularity by means of adjusting distance between the two rollers.

Roller crusher

Roll crusher can be used for medium and fine crushing of ores and stone with medium and low hardness and compressive strength not more than 120-150Mpa. It has good crushing effect on hard materials, which has the following advantages: easy maintenance, simple structure, less excessive comminution, large crushing ratio, simple process and low operating cost.

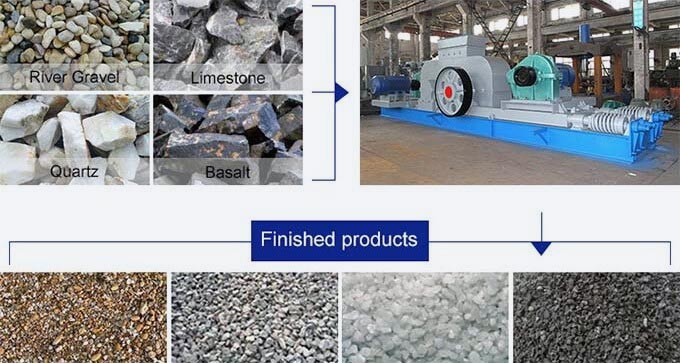

Materials that can be broken: granite, basalt, iron ore, quartzite, gangue, coal, river pebble, perlite, limestone, dolomite, construction waste, glass, cement clinker and certain metals, etc.

Technical Parameter

Model 2PG0425 2PG0640 2PG0740 2PG0850 2PG1060 2PG1260 2PG1560
Roller diameter(mm) Ф400 Ф600 Ф700 Ф800 Ф1000 Ф1200 Ф1500
Roller width(mm) 250 400 400 500 600 600 600
Input Size(mm) ≤25 ≤25 ≤25 ≤25 ≤30 ≤30 ≤30
Discharging Gate(mm) 2-8 2-8 2-8 2-8 2-10 2-10 2-10
Processing capacity(t/h) 3-10 5-20 10-30 15-40 20-50 25-70 30-110
Power Models Y132M-6 Y180L-6 Y200L-4 Y225M-4 Y250M-4 Y315M-6 Y315L-6
Motor power(kw) 5.5×2 15×2 30×2 45×2 55×2 75×2 110×2
