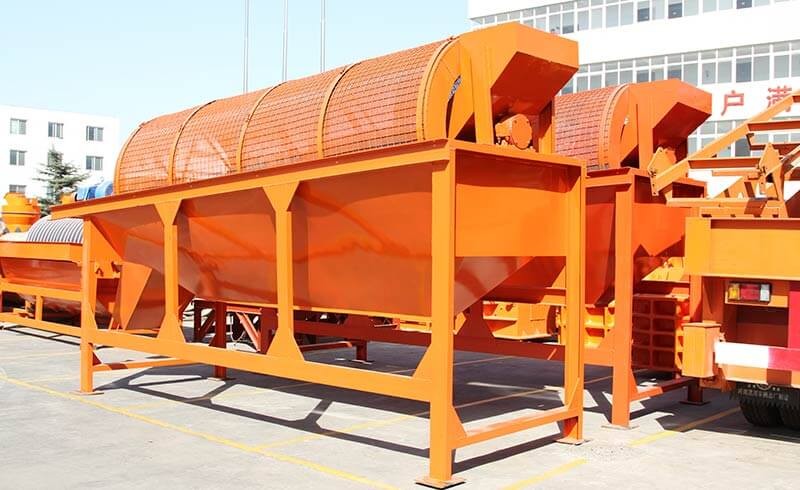

Trommel Screen

Trommel Screen

FOB Reference Price:Get Latest Price

Production capacity: 12-150t/h

Feeding size: 50-150mm

Applicable Materials: soil, stone powder, sand and stone separation, lump coal, coal, stone field for the size of stone and so on.


Free Inquiry

Introduction of Trommel Screen:

Trommel screen mainly consists of motor, reducer, roller device, frame, seal cover, inlet and outlet. When the material enters the roller device, the material on the screen is turned and rolled because of the tilting and rotation of the drum device. The qualified material is discharged through the screen of the cylinder outside the cylinder, and the unqualified materials are discharged through the end of the roller.

Trommel Screen

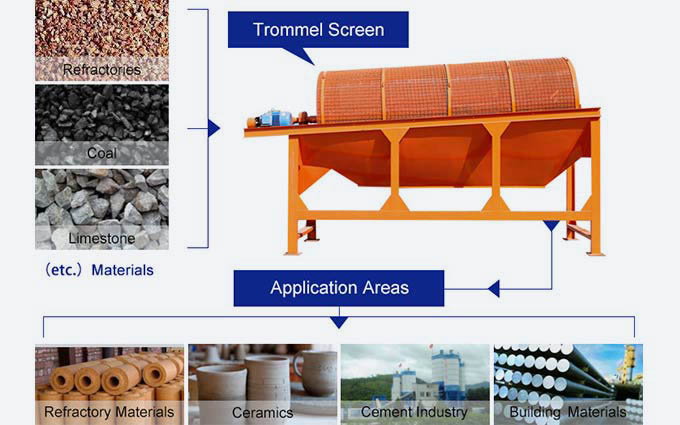

Application area / Applicable materials: It is used for classifying large and small stones, separating soil and stone powder, separating sand and stone from sand and stone fields, separating coal from coal powder, washing coal and chemical industry; the mineral processing industry is used for classifying and separating powdery substances from large and small blocks.

Technical Parameter

Model Capacity (t/h) Power
Sieve hole(2mm) Sieve hole(30mm)
YTS1230 4-12 16-50 5.5
YTS1240 4.5-14 20-60 5.5
YTS1250 5-15 23-70 5.5
YTS1530 6-18 25-75 5.5
YTS1540 6-18 25-75 7.5
YTS1550 7-20 26-80 11
YTS1560 7-22 33-100 11
YTS2040 8-25 40-120 11
YTS2050 10-30 50-150 11
YTS2060 12-35 55-175 11
