Production capacity:80-1500t/h
Feeding size:300-1500mm
Applied Material:river gravel, granite, basalt, iron ore, limestone, calcite, quartz, diabase, etc.
Free Inquiry

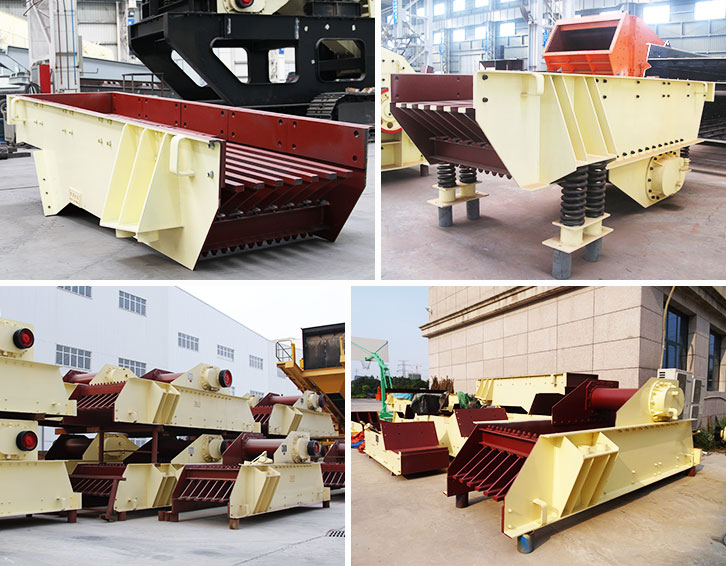

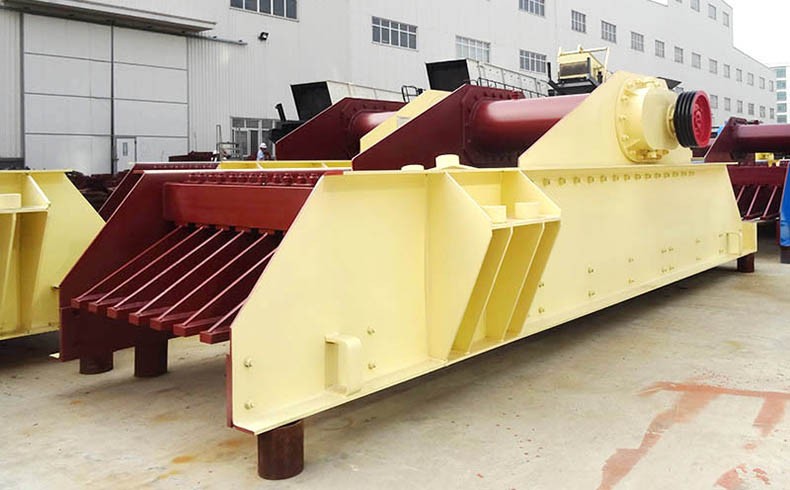

The vibration feeder adopts the structure characteristic of double eccentric shaft exciter, which ensures that the equipment can withstand the impact of large material drop, and the feeding capacity is large. In the production process, the bulk and granular materials can be uniformly, timed and continuously given to the receiving device from the storage bin.

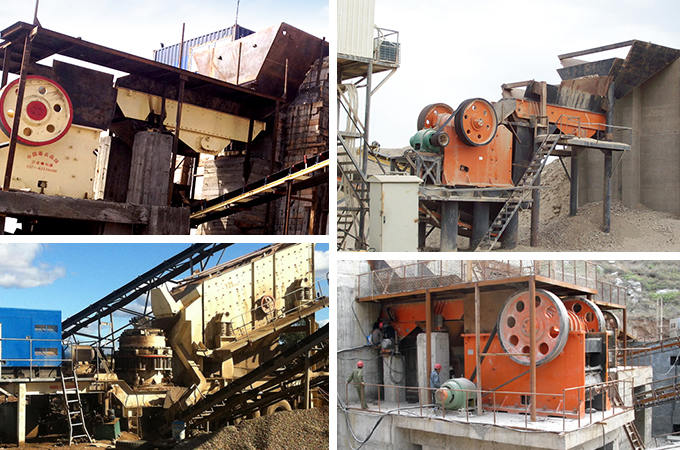

Vibrating feeder is widely used in crushing and screening equipment of metallurgy, coal mine, mineral dressing, building materials, chemical industry, abrasive and so on.
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Model
Max. Feeding Size (mm)
Processing Capacity (t/h)
Motor Power (kw)
Obliquity of material trough (°)
Trough size (mm)
GZD-650×2300
300
80-100
2×1.1
10-20
650×2300
GZD-750×2500
350
100-130
2×1.1
10-20
750×2500
GZD-850×3000
400
120-150
2×3
10-20
850×3000
GZD-1000×3600
500
150-200
2×3.7
10-20
1000×3600
GZD-1100×3600
580
240-300
2×3.7
10-20
1100×3600
GZD-1300×3600
650
450-600
2×5.5
10-20
1300×3600
GZD-1500×3600
1050
450-1000
2×7.5
10-20
1500×3600
GZD-2000×3600
1200
550-1000
2×10
10-20
2000×3600
GZD-2500×5000
1500
650-1500
2×18
10-20
2500×5000
ZSW-380×95
500
100-280
8p 11
0-5-10-15
3800×960
ZSW-490×110
630
150-400
6p 15
0-5-10
4900×1100
ZSW-490×130
750
400-700
6p 22
0-5-10
4900×1300
ZSW-600×130
750
400-700
4p 22
0-5-10
6000×1300
ZSW-600×150
800
500-900
4p 30
0-5-10
6000×1500
ZSW-600×180
900
700-1300
4p 37
0-5-10
6000×1800
ZSW-600×200
1200
800-1500
4p 55
0-5-10
6000×2000
NOTE: please feel free to fill out the form below in detail and you can also send a message to us(sino@zdzg.com)， we will send you latest price within 24 hours.Besides, you can click Chat Online on the right hand side to get quotation online
