The single drum rotary dryer is a kind of drying equipment in mineral industry.

Structure

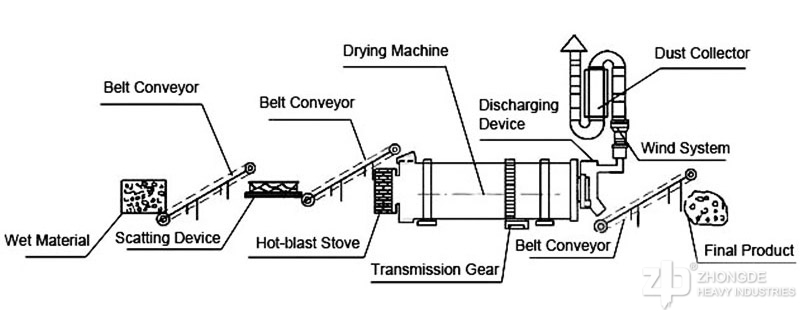

The dryer is mainly composed of the front and rear idler device of the cylinder device, the feeding and discharging device, the transmission device and the gear cover. (Auxiliary equipment matched with the dryer: combustion chamber, feeding and discharging equipment, dust collection equipment, etc.)

Application

Coal Industry: drying coal, coal slurry, raw coal, coal slim, coal gangue, charcoal, fly ash, brown coal and other materials in coal industry.

Construction Industry: drying gypsum, clay, bentonite, kaolin, limestone, sand, quartz and other materials in the construction industry.

Mineral Processing Industry: drying slag, tailings, copper ore powder, gold ore powder, iron ore powder and other mineral material in ore processing industry.

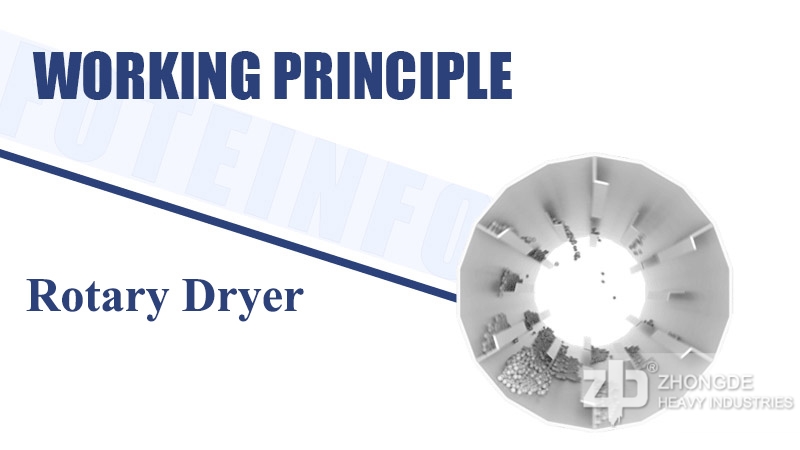

Working Principle

The material enters the cylinder from the feeding box and the feeding material is pushed backward by the spiral plate. As the dryer is placed obliquely, the material flows to the rear end under the action of gravity and rotation. On the other hand, the material lifting plate is repeatedly picked up, brought to the upper end and then continuously sown down, so that the material forms a uniform curtain in the cylinder, and fully exchanges heat with the hot air flow in the cylinder. The moisture is gradually dried and the purpose of drying is achieved.

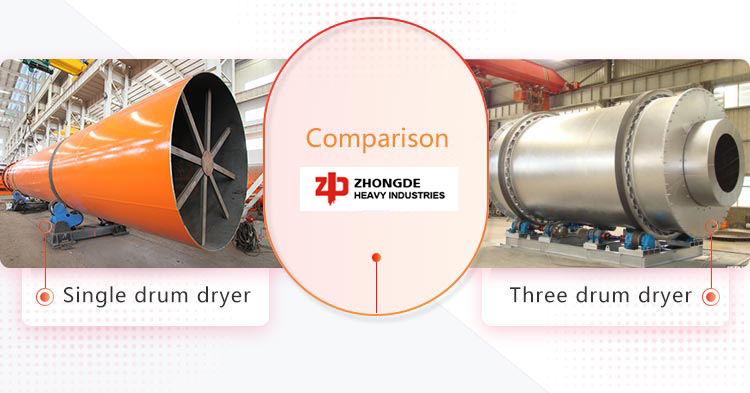

Single Pass Rotary Dryer VS Three Pass Rotary Dryer

Single Pass Rotary Dryer

Advantages: simple structure, easy to install and operate, high heat efficiency.

Disadvantages: long length and large floor space required.

Three Pass Rotary Dryer

Advantages: larger heat exchange area, longer drying period, small volume

Disadvantages: complicate structure, difficult to operate and maintain, high cost

Manufacturer & Supplier

Henan Zhongde Mining Machinery Co., Ltd is a joint-stock mining machinery manufacturing enterprise integrated with scientific research, production and marketing. With an area of 50 thousand ㎡ which includes 15,000 ㎡ of standard heavy duty industrial workshop, Zhongde produces and exports powder grinding equipment, mineral processing equipment, dryer machine equipment, and building materials equipment, etc.We can design the machines according to your special requirements, and we provide one-stop turnkey solutions.

Quotation and price: Zhongde is a direct-selling manufacturer, so the machines are sold at ex-factory price, lower than the market price. In order to send you a suitable machine price, we need to know machine types, capacity, processing material, input and output size, etc.

There are three quick ways to get the latest quotation.

1. Chat online

2. Leave a message on website

3. Send email to us sino@zdzg.com

Service

1. Visit the factory (free car pick-up )

2. 24-hour online service

3. Complete technical guidance

4. Free customized design

5. Free test new machine

Contact Us

Company: Henan Zhongde Mining Machinery Co., Ltd (Zhongde)

Phone: 0086-379-67399999

Email: sino@zdzg.com

Address: Luoxin Avenue, Xin'an, Luoyang, Henan, China
